Windows 10 Homeにリモートデスクトップ接続

先日購入したLIVAZ-4/32-W10(N3350)はWindows 10 Home x64プリインストールモデルです｡

LIVAZ-4/32-W10(N3350)を購入

普段の作業ではリモートデスクトップで接続しての利用なので､設定と思ったらいつもの場所に設定項目がない｡
調べたらHome EditionはRDP機能が使用できないのか｡今更ですね(^^;

でもRDP Wrapper Libraryを使えばリモートデスクトップ接続ができるようになると｡
RDP Wrapper Library by Stas’M
https://github.com/stascorp/rdpwrap#rdp-wrapper-library-by-stasm

RDP Wrapper works as a layer between Service Control Manager and Terminal Services, so the original termsrv.dll file remains untouched. Also this method is very strong against Windows Update.

Home EditionでもTerminal Servicesのtermsrv.dllがあるから､これを使ってRDPを可能にするプログラムなんですね｡でWindows Updateにも支障はないと､凄いな｡

Download(releases)
https://github.com/stascorp/rdpwrap/releases



最新版はRDP Wrapper Library v1.6.1でした｡

1. ダウンロード

上記ダウンロードサイトからRDPWrap-v1.6.1.zipをダウンロードします｡

2. 展開

RDPWrap-v1.6.1.zipを展開します｡




3. install.batを実行

｢管理者として実行(A)｣でinstall.batを実行します｡




MS DOS

RDP Wrapper Library v1.6 Installer v2.3 Copyright (C) Stas'M Corp. 2016 [*] Notice to user: - By using all or any portion of this software, you are agreeing to be bound by all the terms and conditions of the license agreement. - To read the license agreement, run the installer with -l parameter. - If you do not agree to any terms of the license agreement, do not use the software. [*] Installing... [*] Terminal Services version: 10.0.14393.0 [+] This version of Terminal Services is fully supported. [*] Configuring TermService... [*] Starting TermService... [+] TermService found (pid 1060). [*] Shared services found: CryptSvc, Dnscache, LanmanWorkstation, NlaSvc [*] Extracting files... [+] Folder created: C:\Program Files\RDP Wrapper\ [*] Downloading latest INI file... [+] Latest INI file -> C:\Program Files\RDP Wrapper\rdpwrap.ini [+] Extracted rdpw64 -> C:\Program Files\RDP Wrapper\rdpwrap.dll [*] Configuring service library... [*] Checking dependencies... [*] Checking CertPropSvc... [*] Checking SessionEnv... [*] Terminating service... [*] Starting CryptSvc... [*] Starting Dnscache... [-] StartService error (code 1056). [*] Starting LanmanWorkstation... [*] Starting NlaSvc... [-] StartService error (code 1056). [*] Starting TermService... [*] Configuring registry... [*] Configuring firewall... OK [+] Successfully installed. ______________________________________________________________ You can check RDP functionality with RDPCheck program. Also you can configure advanced settings with RDPConf program. 続行するには何かキーを押してください . . .

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45

RDP Wrapper Library v1.6 Installer v2.3 Copyright (C) Stas'M Corp. 2016   [*] Notice to user:   - By using all or any portion of this software, you are agreeing   to be bound by all the terms and conditions of the license agreement.   - To read the license agreement, run the installer with -l parameter.   - If you do not agree to any terms of the license agreement,   do not use the software. [*] Installing... [*] Terminal Services version: 10.0.14393.0 [+] This version of Terminal Services is fully supported. [*] Configuring TermService... [*] Starting TermService... [+] TermService found (pid 1060). [*] Shared services found: CryptSvc, Dnscache, LanmanWorkstation, NlaSvc [*] Extracting files... [+] Folder created: C:\Program Files\RDP Wrapper\ [*] Downloading latest INI file... [+] Latest INI file -> C:\Program Files\RDP Wrapper\rdpwrap.ini [+] Extracted rdpw64 -> C:\Program Files\RDP Wrapper\rdpwrap.dll [*] Configuring service library... [*] Checking dependencies... [*] Checking CertPropSvc... [*] Checking SessionEnv... [*] Terminating service... [*] Starting CryptSvc... [*] Starting Dnscache... [-] StartService error (code 1056). [*] Starting LanmanWorkstation... [*] Starting NlaSvc... [-] StartService error (code 1056). [*] Starting TermService... [*] Configuring registry... [*] Configuring firewall... OK   [+] Successfully installed. ______________________________________________________________   You can check RDP functionality with RDPCheck program. Also you can configure advanced settings with RDPConf program.   続行するには何かキーを押してください . . .

OSのバージョン判定をしてどこまで機能するかチェックしているようです｡

4. Update.batの実行

念のために同様に管理者権限でUpdate.batの実行をしておきます｡

MS DOS

RDP Wrapper Library v1.6 Installer v2.3 Copyright (C) Stas'M Corp. 2016 [*] Checking for updates... [*] Current update date: 2017.02.03 [*] Latest update date: 2017.02.03 [*] Everything is up to date. 続行するには何かキーを押してください . . .

1 2 3 4 5 6 7 8 9 10

RDP Wrapper Library v1.6 Installer v2.3 Copyright (C) Stas'M Corp. 2016   [*] Checking for updates... [*] Current update date: 2017.02.03 [*] Latest update date:  2017.02.03 [*] Everything is up to date.   続行するには何かキーを押してください . . .

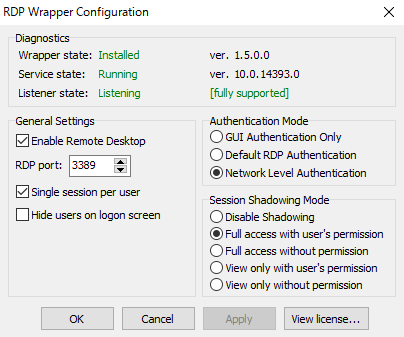

5. RDPConf.exeで設定

RDPをRDPConf.exeを実行して設定します｡



[full supported]とあるからRDPのすべての機能が利用可能のようです｡

6. RDPCheck.exeで動作チェック

RDPCheck.exeを実行して自分自身にリモートデスクトップ接続ができればOKです｡

インストールされたrdpwrap.iniにOS毎のラッパー情報が記載されていて､rdpwrap.dllがラッパープログラムですね｡

これがオープンソースで配布されていのですから有り難いことです｡
