Install sshd on Windows Server 2012 R2(Win32-OpenSSH)

MicrosoftがサポートしているOpenSSHをWindowsに移植するコミュニティのWin32-OpenSSHをインストールしてみました｡

OpenSSH for Windowsリリース段階に到達 – Microsoft
http://news.mynavi.jp/news/2017/05/05/061/

OpenSSH for Windows Update
https://blogs.msdn.microsoft.com/powershell/2015/10/19/openssh-for-windows-update/

GitHub – PowerShell/Win32-OpenSSH: Win32 port of OpenSSH
https://github.com/PowerShell/Win32-OpenSSH

インストール環境
･Windows Server 2012 R2 評価版(Version 6.3.9600)

インストールについてはこちらの手順通りに行いました｡
Install Win32 OpenSSH
https://github.com/PowerShell/Win32-OpenSSH/wiki/Install-Win32-OpenSSH

ダウンロード

プログラムをダウンロードします｡
最新バージョンv0.0.21.0のOpenSSH-Win64.zipをダウンロードしました｡
https://github.com/PowerShell/Win32-OpenSSH/releases

解凍と設置

ダウンロードしたOpenSSH-Win64.zipを解凍して”C:\Program Files\OpenSSH”として設置します｡

Powershellを管理者権限で実行

Powershellを管理者権限で実行します｡

OpenSSH directoryに移動

PS C:\Users\Administrator> cd 'C:\Program Files\OpenSSH'

1	PS C:\Users\Administrator> cd 'C:\Program Files\OpenSSH'

インストール

PS C:\Program Files\OpenSSH> powershell -ExecutionPolicy Bypass -File install-sshd.ps1
[SC] SetServiceObjectSecurity SUCCESS
[SC] ChangeServiceConfig SUCCESS
[SC] ChangeServiceConfig2 SUCCESS
sshd and ssh-agent services successfully installed

PS C:\Program Files\OpenSSH> powershell -ExecutionPolicy Bypass -File install-sshd.ps1

[SC] SetServiceObjectSecurity SUCCESS

[SC] ChangeServiceConfig SUCCESS

[SC] ChangeServiceConfig2 SUCCESS

sshd and ssh-agent services successfully installed

Windows 10で開発者モードを有効にしてWindows Subsystem for Linuxがインストール済みや､他のプログラムがポート22を使用していると競合が発生するので個別に対応が必要です｡

SSH host keysの作成

PS C:\Program Files\OpenSSH> .\ssh-keygen.exe -A
C:\Program Files\OpenSSH\ssh-keygen.exe: generating new host keys: RSA DSA ECDSA ED25519

1 2	PS C:\Program Files\OpenSSH> .\ssh-keygen.exe -A C:\Program Files\OpenSSH\ssh-keygen.exe: generating new host keys: RSA DSA ECDSA ED25519

Firewallの許可

Firewallでポート22を許可します｡

PS C:\Program Files\OpenSSH> New-NetFirewallRule -Protocol TCP -LocalPort 22 -Direction Inbound -Action Allow -DisplayName SSH

Name                  : {8c1e8e92-fa41-4e4f-a734-8a02500d0f7e}
DisplayName           : SSH
Description           :
DisplayGroup          :
Group                 :
Enabled               : True
Profile               : Any
Platform              : {}
Direction             : Inbound
Action                : Allow
EdgeTraversalPolicy   : Block
LooseSourceMapping    : False
LocalOnlyMapping      : False
Owner                 :
PrimaryStatus         : OK
Status                : 規則は、ストアから正常に解析されました。 (65536)
EnforcementStatus     : NotApplicable
PolicyStoreSource     : PersistentStore
PolicyStoreSourceType : Local

PS C:\Program Files\OpenSSH> New-NetFirewallRule -Protocol TCP -LocalPort 22 -Direction Inbound -Action Allow -DisplayName SSH

Name : {8c1e8e92-fa41-4e4f-a734-8a02500d0f7e}

DisplayName : SSH

Description :

DisplayGroup :

Group :

Enabled : True

Profile : Any

Platform : {}

Direction : Inbound

Action : Allow

EdgeTraversalPolicy : Block

LooseSourceMapping : False

LocalOnlyMapping : False

Owner :

PrimaryStatus : OK

Status : 規則は、ストアから正常に解析されました。 (65536)

EnforcementStatus : NotApplicable

PolicyStoreSource : PersistentStore

PolicyStoreSourceType : Local

sshdサービスの自動起動設定

PS C:\Program Files\OpenSSH> Set-Service sshd -StartupType Automatic

1	PS C:\Program Files\OpenSSH> Set-Service sshd -StartupType Automatic

sshdサービスの起動

PS C:\Program Files\OpenSSH> net start sshd
sshd サービスを開始します.
sshd サービスは正常に開始されました。

PS C:\Program Files\OpenSSH> net start sshd

sshd サービスを開始します.

sshd サービスは正常に開始されました。

ファイルのアクセス権変更

PS C:\Program Files\OpenSSH> Powershell.exe -ExecutionPolicy Bypass -Command '. .\FixHostFilePermissions.ps1 -Confirm:$false'
  [*] C:\Program Files\OpenSSH\sshd_config
Inheritance is removed from 'C:\Program Files\OpenSSH\sshd_config'.
'BUILTIN\Users' has no more access to 'C:\Program Files\OpenSSH\sshd_config'.
'APPLICATION PACKAGE AUTHORITY\ALL APPLICATION PACKAGES' has no more access to 'C:\Program Files\OpenSSH\sshd_config'.
'NT SERVICE\sshd' now has Read access to 'C:\Program Files\OpenSSH\sshd_config'.
      Repaired permissions

  [*] C:\Program Files\OpenSSH\ssh_host_dsa_key
'WIN2012R2\Administrator' has no more access to 'C:\Program Files\OpenSSH\ssh_host_dsa_key'.
'NT SERVICE\sshd' now has Read access to 'C:\Program Files\OpenSSH\ssh_host_dsa_key'.
      Repaired permissions

  [*] C:\Program Files\OpenSSH\ssh_host_dsa_key.pub
'WIN2012R2\Administrator' now has Read access to 'C:\Program Files\OpenSSH\ssh_host_dsa_key.pub'.
'NT SERVICE\sshd' now has Read access to 'C:\Program Files\OpenSSH\ssh_host_dsa_key.pub'.
      Repaired permissions

  [*] C:\Program Files\OpenSSH\ssh_host_ecdsa_key
'WIN2012R2\Administrator' has no more access to 'C:\Program Files\OpenSSH\ssh_host_ecdsa_key'.
'NT SERVICE\sshd' now has Read access to 'C:\Program Files\OpenSSH\ssh_host_ecdsa_key'.
      Repaired permissions

  [*] C:\Program Files\OpenSSH\ssh_host_ecdsa_key.pub
'WIN2012R2\Administrator' now has Read access to 'C:\Program Files\OpenSSH\ssh_host_ecdsa_key.pub'.
'NT SERVICE\sshd' now has Read access to 'C:\Program Files\OpenSSH\ssh_host_ecdsa_key.pub'.
      Repaired permissions

  [*] C:\Program Files\OpenSSH\ssh_host_ed25519_key
'WIN2012R2\Administrator' has no more access to 'C:\Program Files\OpenSSH\ssh_host_ed25519_key'.
'NT SERVICE\sshd' now has Read access to 'C:\Program Files\OpenSSH\ssh_host_ed25519_key'.
      Repaired permissions

  [*] C:\Program Files\OpenSSH\ssh_host_ed25519_key.pub
'WIN2012R2\Administrator' now has Read access to 'C:\Program Files\OpenSSH\ssh_host_ed25519_key.pub'.
'NT SERVICE\sshd' now has Read access to 'C:\Program Files\OpenSSH\ssh_host_ed25519_key.pub'.
      Repaired permissions

  [*] C:\Program Files\OpenSSH\ssh_host_rsa_key
'WIN2012R2\Administrator' has no more access to 'C:\Program Files\OpenSSH\ssh_host_rsa_key'.
'NT SERVICE\sshd' now has Read access to 'C:\Program Files\OpenSSH\ssh_host_rsa_key'.
      Repaired permissions

  [*] C:\Program Files\OpenSSH\ssh_host_rsa_key.pub
'WIN2012R2\Administrator' now has Read access to 'C:\Program Files\OpenSSH\ssh_host_rsa_key.pub'.
'NT SERVICE\sshd' now has Read access to 'C:\Program Files\OpenSSH\ssh_host_rsa_key.pub'.
      Repaired permissions

   Done.

PS C:\Program Files\OpenSSH> Powershell.exe -ExecutionPolicy Bypass -Command '. .\FixHostFilePermissions.ps1 -Confirm:$false'

[*] C:\Program Files\OpenSSH\sshd_config

Inheritance is removed from 'C:\Program Files\OpenSSH\sshd_config'.

'BUILTIN\Users' has no more access to 'C:\Program Files\OpenSSH\sshd_config'.

'APPLICATION PACKAGE AUTHORITY\ALL APPLICATION PACKAGES' has no more access to 'C:\Program Files\OpenSSH\sshd_config'.

'NT SERVICE\sshd' now has Read access to 'C:\Program Files\OpenSSH\sshd_config'.

Repaired permissions

[*] C:\Program Files\OpenSSH\ssh_host_dsa_key

'WIN2012R2\Administrator' has no more access to 'C:\Program Files\OpenSSH\ssh_host_dsa_key'.

'NT SERVICE\sshd' now has Read access to 'C:\Program Files\OpenSSH\ssh_host_dsa_key'.

Repaired permissions

[*] C:\Program Files\OpenSSH\ssh_host_dsa_key.pub

'WIN2012R2\Administrator' now has Read access to 'C:\Program Files\OpenSSH\ssh_host_dsa_key.pub'.

'NT SERVICE\sshd' now has Read access to 'C:\Program Files\OpenSSH\ssh_host_dsa_key.pub'.

Repaired permissions

[*] C:\Program Files\OpenSSH\ssh_host_ecdsa_key

'WIN2012R2\Administrator' has no more access to 'C:\Program Files\OpenSSH\ssh_host_ecdsa_key'.

'NT SERVICE\sshd' now has Read access to 'C:\Program Files\OpenSSH\ssh_host_ecdsa_key'.

Repaired permissions

[*] C:\Program Files\OpenSSH\ssh_host_ecdsa_key.pub

'WIN2012R2\Administrator' now has Read access to 'C:\Program Files\OpenSSH\ssh_host_ecdsa_key.pub'.

'NT SERVICE\sshd' now has Read access to 'C:\Program Files\OpenSSH\ssh_host_ecdsa_key.pub'.

Repaired permissions

[*] C:\Program Files\OpenSSH\ssh_host_ed25519_key

'WIN2012R2\Administrator' has no more access to 'C:\Program Files\OpenSSH\ssh_host_ed25519_key'.

'NT SERVICE\sshd' now has Read access to 'C:\Program Files\OpenSSH\ssh_host_ed25519_key'.

Repaired permissions

[*] C:\Program Files\OpenSSH\ssh_host_ed25519_key.pub

'WIN2012R2\Administrator' now has Read access to 'C:\Program Files\OpenSSH\ssh_host_ed25519_key.pub'.

'NT SERVICE\sshd' now has Read access to 'C:\Program Files\OpenSSH\ssh_host_ed25519_key.pub'.

Repaired permissions

[*] C:\Program Files\OpenSSH\ssh_host_rsa_key

'WIN2012R2\Administrator' has no more access to 'C:\Program Files\OpenSSH\ssh_host_rsa_key'.

'NT SERVICE\sshd' now has Read access to 'C:\Program Files\OpenSSH\ssh_host_rsa_key'.

Repaired permissions

[*] C:\Program Files\OpenSSH\ssh_host_rsa_key.pub

'WIN2012R2\Administrator' now has Read access to 'C:\Program Files\OpenSSH\ssh_host_rsa_key.pub'.

'NT SERVICE\sshd' now has Read access to 'C:\Program Files\OpenSSH\ssh_host_rsa_key.pub'.

Repaired permissions

Done.

PATHの設定

sshなどのコマンドを利用するならPATHの設定をする方がいいですね｡

PS C:\Program Files\OpenSSH> setx PATH "%PATH%;C:\Program Files\OpenSSH" /M

成功: 指定した値は保存されました。

PS C:\Program Files\OpenSSH> setx PATH "%PATH%;C:\Program Files\OpenSSH" /M

成功: 指定した値は保存されました。

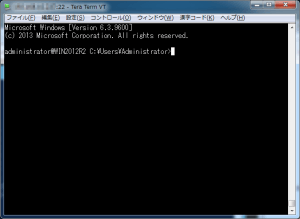

さて一通り設定できたのでTeraTermでadministratorでログインしてみます｡

sshクライアントも利用できます｡

C:\>ssh
usage: ssh [-46AaCfGgKkMNnqsTtVvXxYy] [-b bind_address] [-c cipher_spec]
           [-D [bind_address:]port] [-E log_file] [-e escape_char]
           [-F configfile] [-I pkcs11] [-i identity_file]
           [-J [user@]host[:port]] [-L address] [-l login_name] [-m mac_spec]
           [-O ctl_cmd] [-o option] [-p port] [-Q query_option] [-R address]
           [-S ctl_path] [-W host:port] [-w local_tun[:remote_tun]]
           [user@]hostname [command]

C:\>ssh

usage: ssh [-46AaCfGgKkMNnqsTtVvXxYy] [-b bind_address] [-c cipher_spec]

[-D [bind_address:]port] [-E log_file] [-e escape_char]

[-F configfile] [-I pkcs11] [-i identity_file]

[-J [user@]host[:port]] [-L address] [-l login_name] [-m mac_spec]

[-O ctl_cmd] [-o option] [-p port] [-Q query_option] [-R address]

[-S ctl_path] [-W host:port] [-w local_tun[:remote_tun]]

[user@]hostname [command]

デフォルトのsshd設定(C:\Program Files\OpenSSH\sshd_config)ファイルです｡

#	$OpenBSD: sshd_config,v 1.84 2011/05/23 03:30:07 djm Exp $

# This is the sshd server system-wide configuration file.  See
# sshd_config(5) for more information.

# This sshd was compiled with PATH=/usr/bin:/bin:/usr/sbin:/sbin

# The strategy used for options in the default sshd_config shipped with
# OpenSSH is to specify options with their default value where
# possible, but leave them commented.  Uncommented options override the
# default value.

#Port 22
#AddressFamily any
#ListenAddress 0.0.0.0
#ListenAddress ::

# The default requires explicit activation of protocol 1
#Protocol 2

# HostKey for protocol version 1
#HostKey /etc/ssh/ssh_host_key
# HostKeys for protocol version 2
#HostKey /etc/ssh/ssh_host_rsa_key
#HostKey /etc/ssh/ssh_host_dsa_key
#HostKey /etc/ssh/ssh_host_ecdsa_key

# Lifetime and size of ephemeral version 1 server key
#KeyRegenerationInterval 1h
#ServerKeyBits 1024

# Logging
# obsoletes QuietMode and FascistLogging
#SyslogFacility AUTH
#LogLevel INFO

# Authentication:

#LoginGraceTime 2m
#PermitRootLogin yes
#StrictModes yes
#MaxAuthTries 6
#MaxSessions 10

#RSAAuthentication yes
#PubkeyAuthentication yes

# The default is to check both .ssh/authorized_keys and .ssh/authorized_keys2
# but this is overridden so installations will only check .ssh/authorized_keys
AuthorizedKeysFile	.ssh/authorized_keys

# For this to work you will also need host keys in /etc/ssh/ssh_known_hosts
#RhostsRSAAuthentication no
# similar for protocol version 2
#HostbasedAuthentication no
# Change to yes if you don't trust ~/.ssh/known_hosts for
# RhostsRSAAuthentication and HostbasedAuthentication
#IgnoreUserKnownHosts no
# Don't read the user's ~/.rhosts and ~/.shosts files
#IgnoreRhosts yes

# To disable tunneled clear text passwords, change to no here!
#PasswordAuthentication yes
#PermitEmptyPasswords no

# Change to no to disable s/key passwords
#ChallengeResponseAuthentication yes

# Kerberos options
#KerberosAuthentication no
#KerberosOrLocalPasswd yes
#KerberosTicketCleanup yes
#KerberosGetAFSToken no

# GSSAPI options
#GSSAPIAuthentication no
#GSSAPICleanupCredentials yes

# Set this to 'yes' to enable PAM authentication, account processing,
# and session processing. If this is enabled, PAM authentication will
# be allowed through the ChallengeResponseAuthentication and
# PasswordAuthentication.  Depending on your PAM configuration,
# PAM authentication via ChallengeResponseAuthentication may bypass
# the setting of "PermitRootLogin without-password".
# If you just want the PAM account and session checks to run without
# PAM authentication, then enable this but set PasswordAuthentication
# and ChallengeResponseAuthentication to 'no'.
#UsePAM no

#AllowAgentForwarding yes
#AllowTcpForwarding yes
#GatewayPorts no
#X11Forwarding no
#X11DisplayOffset 10
#X11UseLocalhost yes
#PrintMotd yes
#PrintLastLog yes
#TCPKeepAlive yes
#UseLogin no
#UsePrivilegeSeparation yes
#PermitUserEnvironment no
#Compression delayed
#ClientAliveInterval 0
#ClientAliveCountMax 3
#UseDNS yes
#PidFile /var/run/sshd.pid
#MaxStartups 10
#PermitTunnel no
#ChrootDirectory none

# no default banner path
#Banner none

# override default of no subsystems
Subsystem	sftp	sftp-server.exe

# Example of overriding settings on a per-user basis
#Match User anoncvs
#	X11Forwarding no
#	AllowTcpForwarding no
#	ForceCommand cvs server
# PubkeyAcceptedKeyTypes ssh-ed25519*
hostkeyagent \\.\pipe\openssh-ssh-agent

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

# $OpenBSD: sshd_config,v 1.84 2011/05/23 03:30:07 djm Exp $

# This is the sshd server system-wide configuration file. See

# sshd_config(5) for more information.

# This sshd was compiled with PATH=/usr/bin:/bin:/usr/sbin:/sbin

# The strategy used for options in the default sshd_config shipped with

# OpenSSH is to specify options with their default value where

# possible, but leave them commented. Uncommented options override the

# default value.

#Port 22

#AddressFamily any

#ListenAddress 0.0.0.0

#ListenAddress ::

# The default requires explicit activation of protocol 1

#Protocol 2

# HostKey for protocol version 1

#HostKey /etc/ssh/ssh_host_key

# HostKeys for protocol version 2

#HostKey /etc/ssh/ssh_host_rsa_key

#HostKey /etc/ssh/ssh_host_dsa_key

#HostKey /etc/ssh/ssh_host_ecdsa_key

# Lifetime and size of ephemeral version 1 server key

#KeyRegenerationInterval 1h

#ServerKeyBits 1024

# Logging

# obsoletes QuietMode and FascistLogging

#SyslogFacility AUTH

#LogLevel INFO

# Authentication:

#LoginGraceTime 2m

#PermitRootLogin yes

#StrictModes yes

#MaxAuthTries 6

#MaxSessions 10

#RSAAuthentication yes

#PubkeyAuthentication yes

# The default is to check both .ssh/authorized_keys and .ssh/authorized_keys2

# but this is overridden so installations will only check .ssh/authorized_keys

AuthorizedKeysFile .ssh/authorized_keys

# For this to work you will also need host keys in /etc/ssh/ssh_known_hosts

#RhostsRSAAuthentication no

# similar for protocol version 2

#HostbasedAuthentication no

# Change to yes if you don't trust ~/.ssh/known_hosts for

# RhostsRSAAuthentication and HostbasedAuthentication

#IgnoreUserKnownHosts no

# Don't read the user's ~/.rhosts and ~/.shosts files

#IgnoreRhosts yes

# To disable tunneled clear text passwords, change to no here!

#PasswordAuthentication yes

#PermitEmptyPasswords no

# Change to no to disable s/key passwords

#ChallengeResponseAuthentication yes

# Kerberos options

#KerberosAuthentication no

#KerberosOrLocalPasswd yes

#KerberosTicketCleanup yes

#KerberosGetAFSToken no

# GSSAPI options

#GSSAPIAuthentication no

#GSSAPICleanupCredentials yes

# Set this to 'yes' to enable PAM authentication, account processing,

# and session processing. If this is enabled, PAM authentication will

# be allowed through the ChallengeResponseAuthentication and

# PasswordAuthentication. Depending on your PAM configuration,

# PAM authentication via ChallengeResponseAuthentication may bypass

# the setting of "PermitRootLogin without-password".

# If you just want the PAM account and session checks to run without

# PAM authentication, then enable this but set PasswordAuthentication

# and ChallengeResponseAuthentication to 'no'.

#UsePAM no

#AllowAgentForwarding yes

#AllowTcpForwarding yes

#GatewayPorts no

#X11Forwarding no

#X11DisplayOffset 10

#X11UseLocalhost yes

#PrintMotd yes

#PrintLastLog yes

#TCPKeepAlive yes

#UseLogin no

#UsePrivilegeSeparation yes

#PermitUserEnvironment no

#Compression delayed

#ClientAliveInterval 0

#ClientAliveCountMax 3

#UseDNS yes

#PidFile /var/run/sshd.pid

#MaxStartups 10

#PermitTunnel no

#ChrootDirectory none

# no default banner path

#Banner none

# override default of no subsystems

Subsystem sftp sftp-server.exe

# Example of overriding settings on a per-user basis

#Match User anoncvs

# X11Forwarding no

# AllowTcpForwarding no

# ForceCommand cvs server

# PubkeyAcceptedKeyTypes ssh-ed25519*

hostkeyagent \\.\pipe\openssh-ssh-agent

RootLinks Co., Ltd.

Install sshd on Windows Server 2012 R2(Win32-OpenSSH)

Leave a Reply Cancel Reply

2017年10月
日	月	火	水	木	金	土
1	2	3	4	5	6	7
8	9	10	11	12	13	14
15	16	17	18	19	20	21
22	23	24	25	26	27	28
29	30	31

RootLinks Co., Ltd.

Install sshd on Windows Server 2012 R2(Win32-OpenSSH)

Related posts:

Leave a Reply Cancel Reply
