VMware ESXi 6.0, Patch ESXi-6.0.0-20150504001

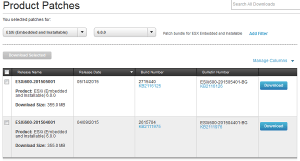

2015/05/14にリリースされた最新のパッチをテスト環境に適用してみました。

VMware ESXi 6.0, Patch Release ESXi600-201505001 (2116125)
http://kb.vmware.com/selfservice/microsites/search.do?language=en_US&cmd=displayKC&externalId=2116125

現在のバージョン

ESXiホストがVmwareに接続できる環境ならばオンラインアップデートが可能です。

1. ESXiホストにログイン

ESXiホストにsshサーバを有効にしてログインするか、コンソールからshellに入って下さい。

2. オンラインアップデート確認

VMwareアップデートサーバに提供されているパッチを確認します。

[root@esxi6:~] esxcli software sources profile list -d https://hostupdate.vmware.com/software/VUM/PRODUCTION/main/vmw-depot-index.xml | sort -r Name Vendor Acceptance Level ESXi-6.0.0-2494585-standard VMware, Inc. PartnerSupported ESXi-6.0.0-2494585-no-tools VMware, Inc. PartnerSupported ESXi-6.0.0-20150504001-standard VMware, Inc. PartnerSupported ESXi-6.0.0-20150504001-no-tools VMware, Inc. PartnerSupported ESXi-6.0.0-20150404001-standard VMware, Inc. PartnerSupported ESXi-6.0.0-20150404001-no-tools VMware, Inc. PartnerSupported (snip)

1 2 3 4 5 6 7 8 9

[root@esxi6:~] esxcli software sources profile list -d https://hostupdate.vmware.com/software/VUM/PRODUCTION/main/vmw-depot-index.xml | sort -r Name                              Vendor        Acceptance Level ESXi-6.0.0-2494585-standard       VMware, Inc.  PartnerSupported ESXi-6.0.0-2494585-no-tools       VMware, Inc.  PartnerSupported ESXi-6.0.0-20150504001-standard   VMware, Inc.  PartnerSupported ESXi-6.0.0-20150504001-no-tools   VMware, Inc.  PartnerSupported ESXi-6.0.0-20150404001-standard   VMware, Inc.  PartnerSupported ESXi-6.0.0-20150404001-no-tools   VMware, Inc.  PartnerSupported (snip)

3. パッチ適用

オンラインでESXi-6.0.0-20150504001-standardを適用します。
適用前に仮想マシンをシャットダウンし、ESXiホストをメンテナンスモードにした方が安全です。
ESXi-6.0.0-20150504001-standardは350MBほどありますので、それなりに時間が掛かります。

[root@esxi6:~] esxcli software profile update -d https://hostupdate.vmware.com/software/VUM/PRODUCTION/main/vmw-depot-index.xml --profile=ESXi-6.0.0-20150504001-standard Update Result Message: The update completed successfully, but the system needs to be rebooted for the changes to be effective. Reboot Required: true VIBs Installed: VMware_bootbank_esx-base_6.0.0-0.6.2715440 VIBs Removed: VMware_bootbank_esx-base_6.0.0-0.0.2494585 VIBs Skipped: VMWARE_bootbank_mtip32xx-native_3.8.5-1vmw.600.0.0.2494585, VMware_bootbank_ata-pata-amd_0.3.10-3vmw.600.0.0.2494585, VMware_bootbank_ata-pata-atiixp_0.4.6-4vmw.600.0.0.2494585, VMware_bootbank_ata-pata-cmd64x_0.2.5-3vmw.600.0.0.2494585, VMware_bootbank_ata-pata-hpt3x2n_0.3.4-3vmw.600.0.0.2494585, VMware_bootbank_ata-pata-pdc2027x_1.0-3vmw.600.0.0.2494585, VMware_bootbank_ata-pata-serverworks_0.4.3-3vmw.600.0.0.2494585, VMware_bootbank_ata-pata-sil680_0.4.8-3vmw.600.0.0.2494585, VMware_bootbank_ata-pata-via_0.3.3-2vmw.600.0.0.2494585, VMware_bootbank_block-cciss_3.6.14-10vmw.600.0.0.2494585, VMware_bootbank_cpu-microcode_6.0.0-0.0.2494585, VMware_bootbank_ehci-ehci-hcd_1.0-3vmw.600.0.0.2494585, VMware_bootbank_elxnet_10.2.309.6v-1vmw.600.0.0.2494585, VMware_bootbank_emulex-esx-elxnetcli_10.2.309.6v-0.0.2494585, VMware_bootbank_esx-dvfilter-generic-fastpath_6.0.0-0.0.2494585, VMware_bootbank_esx-tboot_6.0.0-0.0.2494585, VMware_bootbank_esx-xserver_6.0.0-0.0.2494585, VMware_bootbank_ima-qla4xxx_2.02.18-1vmw.600.0.0.2494585, VMware_bootbank_ipmi-ipmi-devintf_39.1-4vmw.600.0.0.2494585, VMware_bootbank_ipmi-ipmi-msghandler_39.1-4vmw.600.0.0.2494585, VMware_bootbank_ipmi-ipmi-si-drv_39.1-4vmw.600.0.0.2494585, VMware_bootbank_lpfc_10.2.309.8-2vmw.600.0.0.2494585, VMware_bootbank_lsi-mr3_6.605.08.00-6vmw.600.0.0.2494585, VMware_bootbank_lsi-msgpt3_06.255.12.00-7vmw.600.0.0.2494585, VMware_bootbank_lsu-hp-hpsa-plugin_1.0.0-1vmw.600.0.0.2494585, VMware_bootbank_lsu-lsi-lsi-mr3-plugin_1.0.0-1vmw.600.0.0.2494585, VMware_bootbank_lsu-lsi-lsi-msgpt3-plugin_1.0.0-1vmw.600.0.0.2494585, VMware_bootbank_lsu-lsi-megaraid-sas-plugin_1.0.0-1vmw.600.0.0.2494585, VMware_bootbank_lsu-lsi-mpt2sas-plugin_1.0.0-1vmw.600.0.0.2494585, VMware_bootbank_lsu-lsi-mptsas-plugin_1.0.0-1vmw.600.0.0.2494585, VMware_bootbank_misc-cnic-register_1.78.75.v60.7-1vmw.600.0.0.2494585, VMware_bootbank_misc-drivers_6.0.0-0.0.2494585, VMware_bootbank_net-bnx2_2.2.4f.v60.10-1vmw.600.0.0.2494585, VMware_bootbank_net-bnx2x_1.78.80.v60.12-1vmw.600.0.0.2494585, VMware_bootbank_net-cnic_1.78.76.v60.13-2vmw.600.0.0.2494585, VMware_bootbank_net-e1000_8.0.3.1-5vmw.600.0.0.2494585, VMware_bootbank_net-e1000e_2.5.4-6vmw.600.0.0.2494585, VMware_bootbank_net-enic_2.1.2.38-2vmw.600.0.0.2494585, VMware_bootbank_net-forcedeth_0.61-2vmw.600.0.0.2494585, VMware_bootbank_net-igb_5.0.5.1.1-5vmw.600.0.0.2494585, VMware_bootbank_net-ixgbe_3.7.13.7.14iov-20vmw.600.0.0.2494585, VMware_bootbank_net-mlx4-core_1.9.7.0-1vmw.600.0.0.2494585, VMware_bootbank_net-mlx4-en_1.9.7.0-1vmw.600.0.0.2494585, VMware_bootbank_net-nx-nic_5.0.621-5vmw.600.0.0.2494585, VMware_bootbank_net-tg3_3.131d.v60.4-1vmw.600.0.0.2494585, VMware_bootbank_net-vmxnet3_1.1.3.0-3vmw.600.0.0.2494585, VMware_bootbank_nmlx4-core_3.0.0.0-1vmw.600.0.0.2494585, VMware_bootbank_nmlx4-en_3.0.0.0-1vmw.600.0.0.2494585, VMware_bootbank_nmlx4-rdma_3.0.0.0-1vmw.600.0.0.2494585, VMware_bootbank_nvme_1.0e.0.35-1vmw.600.0.0.2494585, VMware_bootbank_ohci-usb-ohci_1.0-3vmw.600.0.0.2494585, VMware_bootbank_qlnativefc_2.0.12.0-5vmw.600.0.0.2494585, VMware_bootbank_rste_2.0.2.0088-4vmw.600.0.0.2494585, VMware_bootbank_sata-ahci_3.0-21vmw.600.0.0.2494585, VMware_bootbank_sata-ata-piix_2.12-10vmw.600.0.0.2494585, VMware_bootbank_sata-sata-nv_3.5-4vmw.600.0.0.2494585, VMware_bootbank_sata-sata-promise_2.12-3vmw.600.0.0.2494585, VMware_bootbank_sata-sata-sil24_1.1-1vmw.600.0.0.2494585, VMware_bootbank_sata-sata-sil_2.3-4vmw.600.0.0.2494585, VMware_bootbank_sata-sata-svw_2.3-3vmw.600.0.0.2494585, VMware_bootbank_scsi-aacraid_1.1.5.1-9vmw.600.0.0.2494585, VMware_bootbank_scsi-adp94xx_1.0.8.12-6vmw.600.0.0.2494585, VMware_bootbank_scsi-aic79xx_3.1-5vmw.600.0.0.2494585, VMware_bootbank_scsi-bnx2fc_1.78.78.v60.8-1vmw.600.0.0.2494585, VMware_bootbank_scsi-bnx2i_2.78.76.v60.8-1vmw.600.0.0.2494585, VMware_bootbank_scsi-fnic_1.5.0.45-3vmw.600.0.0.2494585, VMware_bootbank_scsi-hpsa_6.0.0.44-4vmw.600.0.0.2494585, VMware_bootbank_scsi-ips_7.12.05-4vmw.600.0.0.2494585, VMware_bootbank_scsi-megaraid-mbox_2.20.5.1-6vmw.600.0.0.2494585, VMware_bootbank_scsi-megaraid-sas_6.603.55.00-2vmw.600.0.0.2494585, VMware_bootbank_scsi-megaraid2_2.00.4-9vmw.600.0.0.2494585, VMware_bootbank_scsi-mpt2sas_19.00.00.00-1vmw.600.0.0.2494585, VMware_bootbank_scsi-mptsas_4.23.01.00-9vmw.600.0.0.2494585, VMware_bootbank_scsi-mptspi_4.23.01.00-9vmw.600.0.0.2494585, VMware_bootbank_scsi-qla4xxx_5.01.03.2-7vmw.600.0.0.2494585, VMware_bootbank_uhci-usb-uhci_1.0-3vmw.600.0.0.2494585, VMware_bootbank_xhci-xhci_1.0-2vmw.600.0.0.2494585, VMware_locker_tools-light_6.0.0-0.0.2494585

1 2 3 4 5 6 7

[root@esxi6:~] esxcli software profile update -d https://hostupdate.vmware.com/software/VUM/PRODUCTION/main/vmw-depot-index.xml --profile=ESXi-6.0.0-20150504001-standard Update Result    Message: The update completed successfully, but the system needs to be rebooted for the changes to be effective.    Reboot Required: true    VIBs Installed: VMware_bootbank_esx-base_6.0.0-0.6.2715440    VIBs Removed: VMware_bootbank_esx-base_6.0.0-0.0.2494585    VIBs Skipped: VMWARE_bootbank_mtip32xx-native_3.8.5-1vmw.600.0.0.2494585, VMware_bootbank_ata-pata-amd_0.3.10-3vmw.600.0.0.2494585, VMware_bootbank_ata-pata-atiixp_0.4.6-4vmw.600.0.0.2494585, VMware_bootbank_ata-pata-cmd64x_0.2.5-3vmw.600.0.0.2494585, VMware_bootbank_ata-pata-hpt3x2n_0.3.4-3vmw.600.0.0.2494585, VMware_bootbank_ata-pata-pdc2027x_1.0-3vmw.600.0.0.2494585, VMware_bootbank_ata-pata-serverworks_0.4.3-3vmw.600.0.0.2494585, VMware_bootbank_ata-pata-sil680_0.4.8-3vmw.600.0.0.2494585, VMware_bootbank_ata-pata-via_0.3.3-2vmw.600.0.0.2494585, VMware_bootbank_block-cciss_3.6.14-10vmw.600.0.0.2494585, VMware_bootbank_cpu-microcode_6.0.0-0.0.2494585, VMware_bootbank_ehci-ehci-hcd_1.0-3vmw.600.0.0.2494585, VMware_bootbank_elxnet_10.2.309.6v-1vmw.600.0.0.2494585, VMware_bootbank_emulex-esx-elxnetcli_10.2.309.6v-0.0.2494585, VMware_bootbank_esx-dvfilter-generic-fastpath_6.0.0-0.0.2494585, VMware_bootbank_esx-tboot_6.0.0-0.0.2494585, VMware_bootbank_esx-xserver_6.0.0-0.0.2494585, VMware_bootbank_ima-qla4xxx_2.02.18-1vmw.600.0.0.2494585, VMware_bootbank_ipmi-ipmi-devintf_39.1-4vmw.600.0.0.2494585, VMware_bootbank_ipmi-ipmi-msghandler_39.1-4vmw.600.0.0.2494585, VMware_bootbank_ipmi-ipmi-si-drv_39.1-4vmw.600.0.0.2494585, VMware_bootbank_lpfc_10.2.309.8-2vmw.600.0.0.2494585, VMware_bootbank_lsi-mr3_6.605.08.00-6vmw.600.0.0.2494585, VMware_bootbank_lsi-msgpt3_06.255.12.00-7vmw.600.0.0.2494585, VMware_bootbank_lsu-hp-hpsa-plugin_1.0.0-1vmw.600.0.0.2494585, VMware_bootbank_lsu-lsi-lsi-mr3-plugin_1.0.0-1vmw.600.0.0.2494585, VMware_bootbank_lsu-lsi-lsi-msgpt3-plugin_1.0.0-1vmw.600.0.0.2494585, VMware_bootbank_lsu-lsi-megaraid-sas-plugin_1.0.0-1vmw.600.0.0.2494585, VMware_bootbank_lsu-lsi-mpt2sas-plugin_1.0.0-1vmw.600.0.0.2494585, VMware_bootbank_lsu-lsi-mptsas-plugin_1.0.0-1vmw.600.0.0.2494585, VMware_bootbank_misc-cnic-register_1.78.75.v60.7-1vmw.600.0.0.2494585, VMware_bootbank_misc-drivers_6.0.0-0.0.2494585, VMware_bootbank_net-bnx2_2.2.4f.v60.10-1vmw.600.0.0.2494585, VMware_bootbank_net-bnx2x_1.78.80.v60.12-1vmw.600.0.0.2494585, VMware_bootbank_net-cnic_1.78.76.v60.13-2vmw.600.0.0.2494585, VMware_bootbank_net-e1000_8.0.3.1-5vmw.600.0.0.2494585, VMware_bootbank_net-e1000e_2.5.4-6vmw.600.0.0.2494585, VMware_bootbank_net-enic_2.1.2.38-2vmw.600.0.0.2494585, VMware_bootbank_net-forcedeth_0.61-2vmw.600.0.0.2494585, VMware_bootbank_net-igb_5.0.5.1.1-5vmw.600.0.0.2494585, VMware_bootbank_net-ixgbe_3.7.13.7.14iov-20vmw.600.0.0.2494585, VMware_bootbank_net-mlx4-core_1.9.7.0-1vmw.600.0.0.2494585, VMware_bootbank_net-mlx4-en_1.9.7.0-1vmw.600.0.0.2494585, VMware_bootbank_net-nx-nic_5.0.621-5vmw.600.0.0.2494585, VMware_bootbank_net-tg3_3.131d.v60.4-1vmw.600.0.0.2494585, VMware_bootbank_net-vmxnet3_1.1.3.0-3vmw.600.0.0.2494585, VMware_bootbank_nmlx4-core_3.0.0.0-1vmw.600.0.0.2494585, VMware_bootbank_nmlx4-en_3.0.0.0-1vmw.600.0.0.2494585, VMware_bootbank_nmlx4-rdma_3.0.0.0-1vmw.600.0.0.2494585, VMware_bootbank_nvme_1.0e.0.35-1vmw.600.0.0.2494585, VMware_bootbank_ohci-usb-ohci_1.0-3vmw.600.0.0.2494585, VMware_bootbank_qlnativefc_2.0.12.0-5vmw.600.0.0.2494585, VMware_bootbank_rste_2.0.2.0088-4vmw.600.0.0.2494585, VMware_bootbank_sata-ahci_3.0-21vmw.600.0.0.2494585, VMware_bootbank_sata-ata-piix_2.12-10vmw.600.0.0.2494585, VMware_bootbank_sata-sata-nv_3.5-4vmw.600.0.0.2494585, VMware_bootbank_sata-sata-promise_2.12-3vmw.600.0.0.2494585, VMware_bootbank_sata-sata-sil24_1.1-1vmw.600.0.0.2494585, VMware_bootbank_sata-sata-sil_2.3-4vmw.600.0.0.2494585, VMware_bootbank_sata-sata-svw_2.3-3vmw.600.0.0.2494585, VMware_bootbank_scsi-aacraid_1.1.5.1-9vmw.600.0.0.2494585, VMware_bootbank_scsi-adp94xx_1.0.8.12-6vmw.600.0.0.2494585, VMware_bootbank_scsi-aic79xx_3.1-5vmw.600.0.0.2494585, VMware_bootbank_scsi-bnx2fc_1.78.78.v60.8-1vmw.600.0.0.2494585, VMware_bootbank_scsi-bnx2i_2.78.76.v60.8-1vmw.600.0.0.2494585, VMware_bootbank_scsi-fnic_1.5.0.45-3vmw.600.0.0.2494585, VMware_bootbank_scsi-hpsa_6.0.0.44-4vmw.600.0.0.2494585, VMware_bootbank_scsi-ips_7.12.05-4vmw.600.0.0.2494585, VMware_bootbank_scsi-megaraid-mbox_2.20.5.1-6vmw.600.0.0.2494585, VMware_bootbank_scsi-megaraid-sas_6.603.55.00-2vmw.600.0.0.2494585, VMware_bootbank_scsi-megaraid2_2.00.4-9vmw.600.0.0.2494585, VMware_bootbank_scsi-mpt2sas_19.00.00.00-1vmw.600.0.0.2494585, VMware_bootbank_scsi-mptsas_4.23.01.00-9vmw.600.0.0.2494585, VMware_bootbank_scsi-mptspi_4.23.01.00-9vmw.600.0.0.2494585, VMware_bootbank_scsi-qla4xxx_5.01.03.2-7vmw.600.0.0.2494585, VMware_bootbank_uhci-usb-uhci_1.0-3vmw.600.0.0.2494585, VMware_bootbank_xhci-xhci_1.0-2vmw.600.0.0.2494585, VMware_locker_tools-light_6.0.0-0.0.2494585

4. ESXiホストの再起動

パッチの適用が成功するとESXiホストの再起動を行います。

5. バージョンの確認
[root@esxi6:~] vmware -lv VMware ESXi 6.0.0 build-2715440 VMware ESXi 6.0.0 GA

1 2 3

[root@esxi6:~] vmware -lv VMware ESXi 6.0.0 build-2715440 VMware ESXi 6.0.0 GA

オンラインアップデートでエラーが表示された場合はファイアフォールのhttpclientが許可になっていない可能性があります。

[root@esxi6:~] esxcli software profile update -d https://hostupdate.vmware.com/software/VUM/PRODUCTION/main/vmw-depot-index.xml --profile=ESXi-6.0.0-20150504001-standard [VibDownloadError] Failed to download VIB. url = esx-base-6.0.0-0.6.2715440 localfile = Unable to download VIB from any of the URLs https://hostupdate.vmware.com/software/VUM/PRODUCTION/main/esx/vmw/vib20/esx-base/VMware_bootbank_esx-base_6.0.0-0.6.2715440.vib Please refer to the log file for more details.

1 2 3 4 5 6

[root@esxi6:~] esxcli software profile update -d https://hostupdate.vmware.com/software/VUM/PRODUCTION/main/vmw-depot-index.xml --profile=ESXi-6.0.0-20150504001-standard [VibDownloadError] Failed to download VIB.         url = esx-base-6.0.0-0.6.2715440   localfile = Unable to download VIB from any of the URLs https://hostupdate.vmware.com/software/VUM/PRODUCTION/main/esx/vmw/vib20/esx-base/VMware_bootbank_esx-base_6.0.0-0.6.2715440.vib Please refer to the log file for more details.

httpclientを許可して下さい。

esxcli network firewall ruleset set -e true -r httpClient

1	esxcli network firewall ruleset set -e true -r httpClient
